Tascam DR-100 Review


Front and Top Views of Tascam DR-100

First Impressions

The Tascam DR-100 feels fairly solid but just a little too bulky to be comfortable in a small to medium hand.

The body construction is mostly metal. Four (4) tiny rubber feet are on the back.

At 3.2" x 6.0" x 1.4", it can easily fit in a large coat pocket, backpack or briefcase.

The DR-100's backlit LCD screen is clear, coherent and easy to see.

The buttons are crisp, responsive and very clearly laid out.

In the Box

The Tascam DR-100 comes with

*a 1GB SD media card
*a proprietary BP-L2 lithium ion battery
*a usb cable
*a soft case
*a windscreen
*a wireless remotecontrol with coin battery, adapter and cable and
*an Owners Manual.



This is a nice assortment of accessories. The wireless remote is a particular standout. Still, it would be nice if Tascam included an AC adapter for such a power-hungry unit. The Tascam PS-P520 power supply is optional.

Ease of Use

The Tascam DR-100 is easy to use. The built-in tripod mounting hole in the back makes it easy to set up with a tripod or a mic stand and adapter. The speaker monitor helps you keep track of your recordings.

Select your input source (LINE, Uni built-in, Omni built-in or XLR) with the input switch on the front of the unit.

Press the RECORD button once to go into REC PAUSE mode.

Adjust the input levels with the concentric INPUT LEVEL dials and the MIC GAIN switch. (They will not work with LINE IN sources).

Adjust the volume output from the Headphone/LINE OUT jack with the OUTPUT LEVEL dial.

Press the REC button again to record.
Press the STOP button to stop.
Press the PLAY/PAUSE button to listen to the file.

Navigation through the DR-100's menu tree is elegantly accomplished with a wheel on the front of the unit, the center of which is the ENTER/MARK button. Anyone comfortable with a file/menu interface on a computer will figure it out quickly. Turning the wheel is much easier on the thumb than clicking a button dozens of times.

Our favorite feature of the navigation wheel is being able to fast forward or rewind very precisely to a location in any file you've recorded. The DIVIDE function also lets you split a file very precisely. Very nice.


Storage and Connectivity

The Tascam DR-100 can write files up to 2GB and accept SD media cards up to 32GB in size. It records mp3 files from 32-320 kbps and wav files up to 24-bit/48kHz. Tascam says that 96kHz recording capability will be provided in the upcoming version 1.10 software update.

The USB 2.0 connection is very fast.

The Tascam DR-100 has 2 balanced XLR MIC inputs with phantom power, a mini USB 2.0 port, and 1/8" stereo Headphone, LINE IN, LINE OUT and REMOTE jacks.

More information can be found in the Tascam DR-100 owner manual.

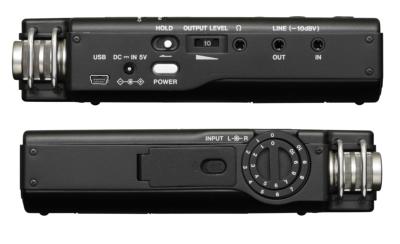

Tascam DR-100 Side Views



Battery Life

Tascam estimates that if you record mp3 files at 128 kbps with the backlight off, the BP-L2 lithium ion battery will last 5 hours and a pair of alkaline batteries will last 2 hours. During our battery life test, the BP-L2 lithium ion battery lasted 5.7 hours and a pair of alkalines lasted 1.3 hours. Tascam recommends using both types of batteries for longest life.

Note that Tascam's BP-L2 lithium ion battery is proprietary and costs $49. Since Tascam does not make a charger for the BP-L2, you'll need to buy a spare recorder to charge your spare BP-L2 battery while the other is being used...


Sound Quality/Microphones

The Tascam DR-100 sounds good. The built-in mics are relatively quiet.

While making our test samples, however, we noticed that it took more effort to get a strong mic or line input signal with the DR-100 than with other portable recorders, even with the MIC GAIN switch set to HIGH.

Take a listen. All of our tests were made at the HIGH mic gain setting.


  Internal Mics Mic/
Dynamic
Mic/
Condenser
Line/
Condenser






Tascam DR-100 Angle View

Conclusion

The Tascam DR-100 is a good and easy-to-use digital recorder.

If you are looking for a handheld recorder with XLR inputs and phantom power, it should definitely be on your short list for consideration.
